Card: Credit card direct payment

The card model lets customers enter credit card details directly on the Shoplazza checkout page. This model requires PCI-DSS compliance and must support 3DS verification where required.

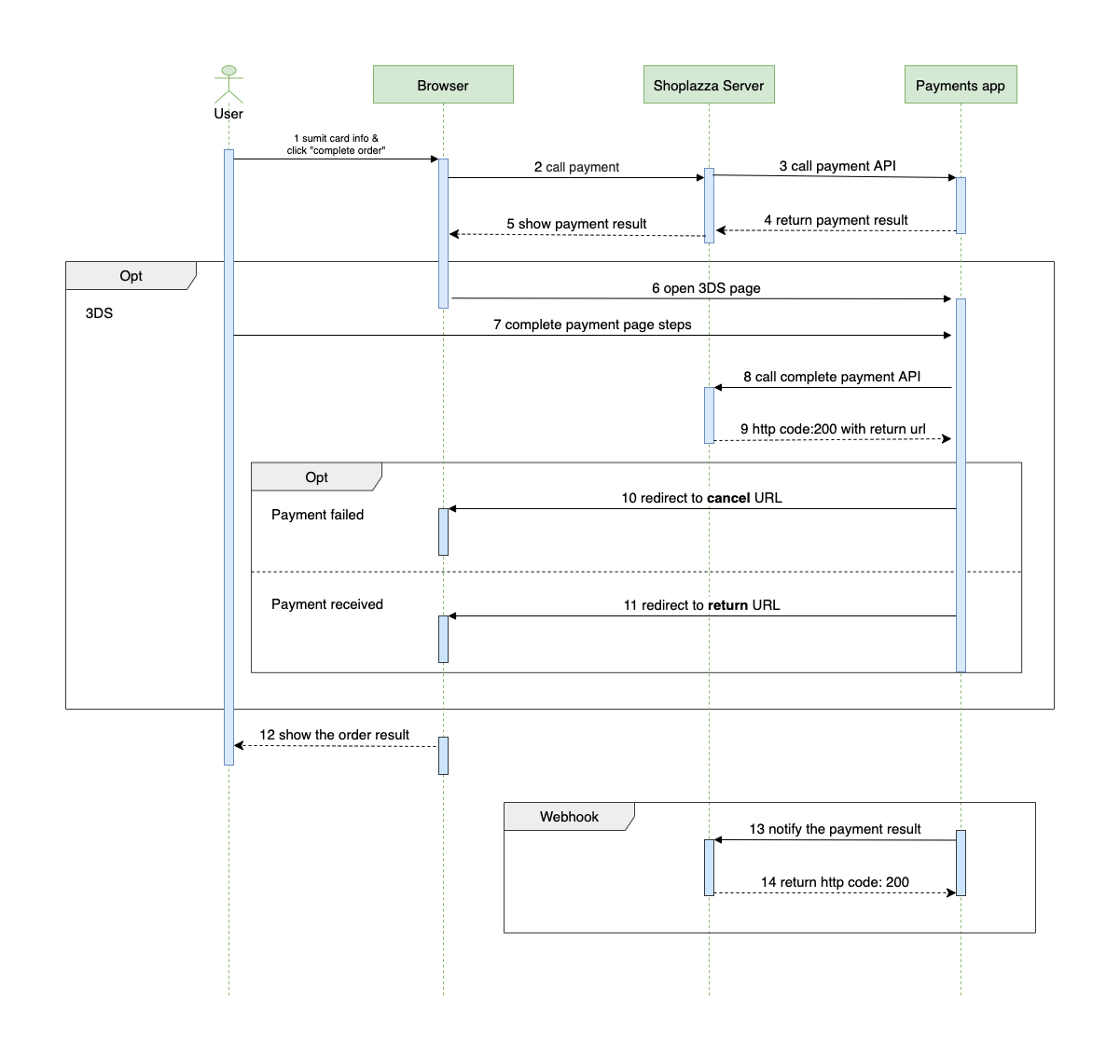

Sequence diagram steps

1. The customer enters credit card information and clicks to complete payment.
2. The browser sends the payment request to the Shoplazza server.
3. The Shoplazza server forwards the payment request to the payments app server.
4. The payments app server returns the payment status to the Shoplazza server.
5. The Shoplazza server sends the payment result back to the browser.
6. If 3DS verification is required, the browser redirects the customer to the 3DS verification page. Otherwise, the flow continues to the result page.
7. The customer submits verification details on the 3DS page.
8. The payments app server calls the Complete Payment API.
9. Shoplazza returns a redirect URL to the payments app server.
10. If payment fails, the customer is redirected to the cancel_url provided in the payment request.
11. If payment succeeds, the customer is redirected to the complete_url returned by Shoplazza.
12. The customer is directed to the order payment result page.
13. The payments app server sends the final payment result notification to the callback URL.
14. Shoplazza acknowledges receipt of the notification with HTTP 200.

Card request fields

Direct card payment uses the payment session request and includes serialized credit card information in the cards field.

Key	Required	Type	Description
cards	No	string	Serialized JSON object containing credit card information.
cards.first_name	No	string	First name on the card.
cards.last_name	No	string	Last name on the card.
cards.card_number	No	string	Credit card number.
cards.expire_year	No	string	Two-digit expiration year.
cards.expire_month	No	string	Two-digit expiration month.
cards.card_cvv	No	string	CVV, 3 or 4 digits.

Response without 3DS

If 3DS is not required, return the payment result directly.

{
  "app_id": "12345",
  "payment_id": "7eb3fefb-6b43-4400-b40a-a2a0531364ae",
  "amount": "254.20",
  "currency": "CAD",
  "status": "paid",
  "transaction_no": "123456789",
  "type": "sale",
  "message": "",
  "test": false,
  "timestamp": "2021-09-01T18:32:20Z"
}

Response with 3DS

If 3DS verification is required, return a redirect URL for verification.

{
  "redirect_url": "https://3ds-verification.example"
}

Failure response

{
  "code": "ERR-1234",
  "message": "amount less than 1000"
}
